On this page
  • Designer
  • Main Menu
  • Project Toolbar
  • Adding Modules to the Toolbox
Export as PDF
  1. PLATFORM
  2. Platform Features
  3. Creating & Running Projects
  4. Orchestrating Workflows with Designer

Designer Home Page Overview

PreviousOrchestrating Workflows with DesignerNextUsing the appRules Designer

Last updated 2 years ago

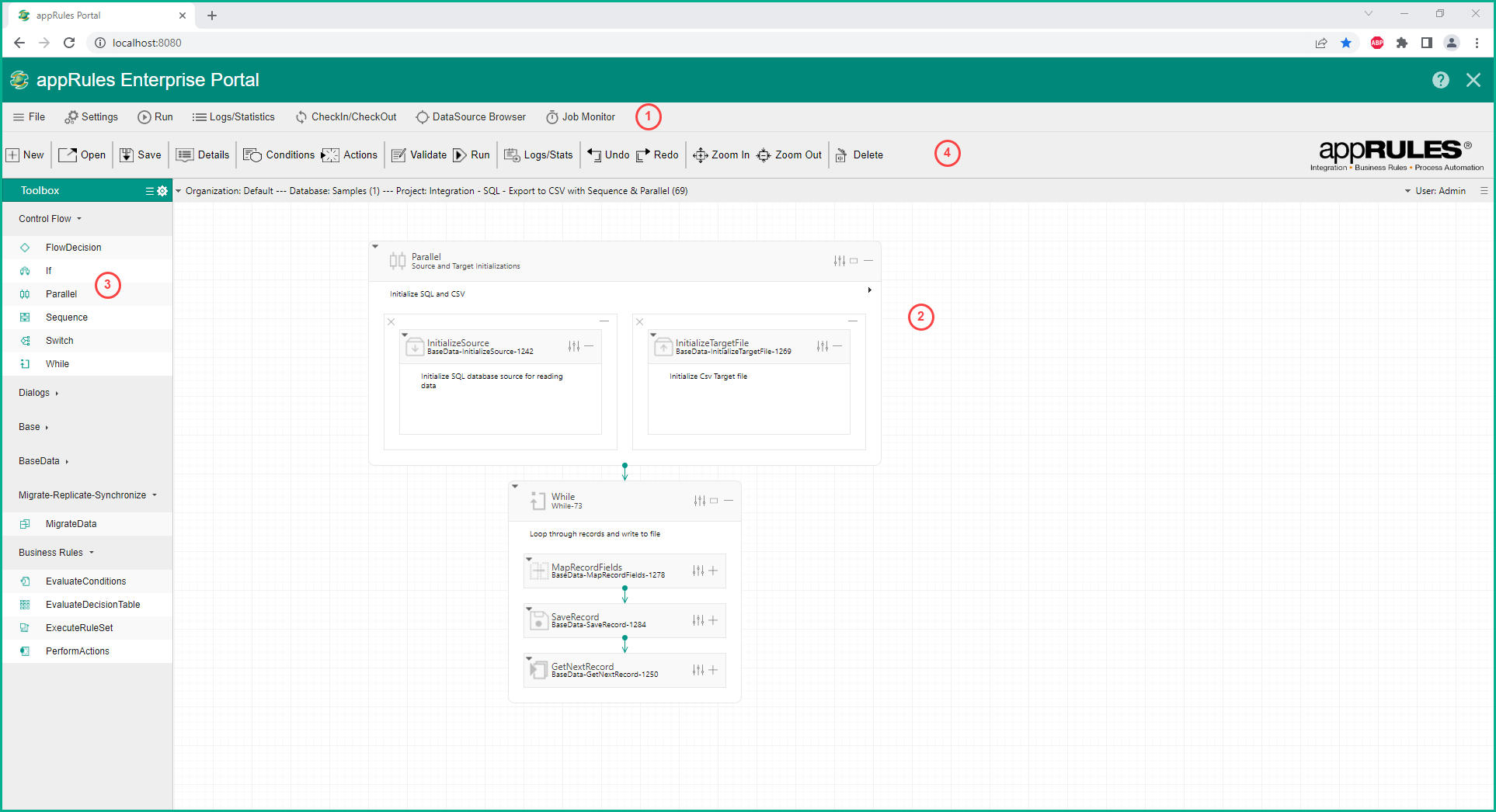

This section covers the appRules Designer environment. It covers the main components including the toolbox, the designer, the property grid associated with the active activity, the Main Menu and Ribbon bar.

Designer

The main menu gives you access to the general features:

  • System settings including runtime, user, data source and project definitions.

  • The Run menu for directly running jobs.

  • Logs/Statistics for viewing logs and statistics from running and completed jobs.

  • Check In/Check Out for checking in and checking out project databases.

  • Job Monitor for monitoring running jobs.

The Designer is the work surface for composing appRules projects. It is the drag/drop environment on which activities are defined and connected to form the flow of the process. To add a workflow activity to any part of the designer, drag it from the toolbox and drop it on the designer.

The Toolbox shows the available workflow activities including the Generic activities and appConnector activities. The activities in the toolbox are grouped into sections.

The project toolbar gives you access to the project management tools and the properties of the currently opened Project

Main Menu

Menu

Option

Description

File

Log Into Project Database

To Open a different project Database

User Settings

To Edit the current user settings

Configure Toolbox

To Add or Remove activity modules from the current Toolbox

Master Admin Options

This submenu gives access to the Admin features (Create New Project Database and other utilities).

Developer Options

If the current user is a developer, his submenu includes options for additional settings including project settings.

Log Out

Log Off from the current database and close the application

Settings

RunTime Settings

Define the runtime settings for the different environments (Test, Production, Development…)

Users

(Admin Only) Define and change user types and settings.

Data Sources

Manage settings for the Data Sources used in the current project database including metadata generation and connections

Projects

Manage the settings for all projects in the current project database including Conditions, Actions, Schedules, Notifications, etc.

Run

Validate Project

Validates a selected project and displays results.

Run Project

Runs a select project directly

Rerun Data Migration Job

If the platform product is Data Migration Engine or the Enterprise Portal, this option reruns a data migration job.

Logs/Statistics

Project Run Details

Displays the complete Logs/Stats of a selected project ordered by Run Instances

Project Run Instances

Displays the Run Instances of a selected project

Database Log Entries

Displays the contents of the logs for a selected project based on a specific date range.

Project Activity Statistics

Displays the statistics related to project activities.

Project Data Source Statistics

Display the statistics about the project data sources.

System Log Files

Access the optional log files generated if extended logging is selected at runtime.

CheckIn/CheckOut

CheckIn Project Database

Checks in (copy) one project database into another. Note: Source records are not locked for editing.

CheckOut Project Database

Checks out (copy) one project database into another. Note: Source records are locked for editing.

Data Source Browser

Browse selected records in any supported data source type using the data source browser.

Job Monitor

Monitor and control all running jobs using the Job Monitor.

Project Toolbar

Options

Description

New

Creates a new project.

Open

Opens an existing project.

Save

Saves the current project designer settings.

Details

Displays the Project Details for the currently selected project. Project settings including, schedule, notifications, variables, etc. can be added, changed or deleted.

Validate

Validates the current project and displays the results.

Run

Runs the current project

Logs/Stats

Displays logs and statistics for the current project

Undo

Undo the last designer action

Redo

Redo the last designer action

Zoom in

Increase the size of the designer view

Zoom out

Decrease the size of the designer view

Delete

Deletes the selected activities from the designer view

Adding Modules to the Toolbox

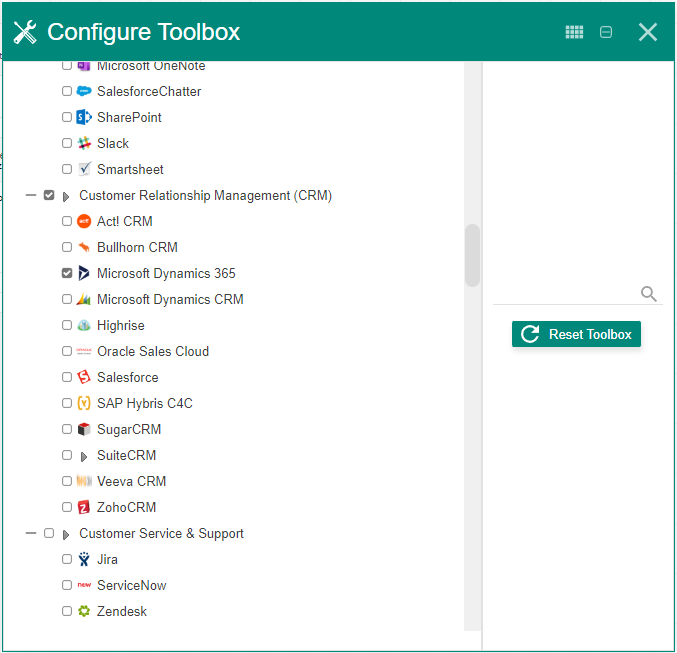

To include activity modules in the toolbox, click the gear icon located at the top right of the toolbox in the home page or select "Configure Toolbox" from the File Menu:

Select the modules to be included from each category (eg CRM, ERP, etc.) and Click ā€Reset Toolboxā€ when done.
